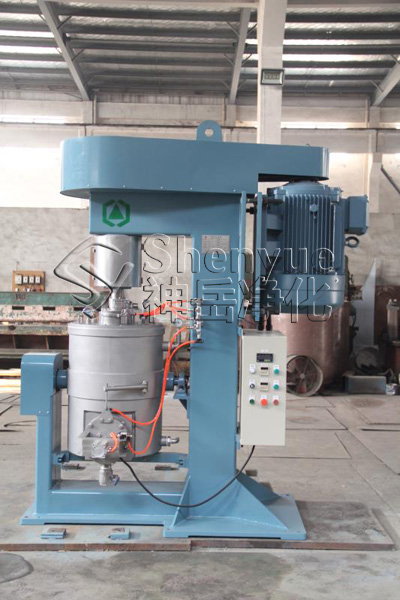

Vertical Dry Ball Mill

Product Name： Vertical Dry Ball Mill
Manufacturer： Shen Yue Purification

Ultra-fine agitating ball mill is a kind of ultra-fine powder crushing equipment with the most development prospects and the highest energy utilization rate. This device can be used for mechanical alloying by powder dry vacuum ball milling. The device can be produced discontinuously or continuously.
This equipment is composed of ball mill cylinder and agitator. There are magic balls in the cylinder. When the agitator rotates highly, magic balls and materials circulate and rotate in a multi-dimensional way, which results in intense motion in the position where the ball mill is continuously displaced from top to bottom, left to right. The extrusion force produced by the gravity of ball mill medium and the spiral rotation is applied to the object. The material produces impact force, friction and shearing action, which makes the material pulverized.

The inner cylinder of HQGM series superfine stirring ball mill is made of special wear-resistant steel. Made of stainless steel. Zirconium beads, chromium steel beads and agate balls with diameters between 1.5mm and 1.6mm can be selected for ball milling medium balls. The range of mechanical speed can be adjusted from 400r/min to 1800r/min. It can effectively grind metals in inert atmosphere protection. By rapidly grinding the material to micron level, it can reach a higher degree of surface contact and reduce the surface tension of solid materials. Therefore, high quality products can not be obtained, such as drum ball mill, vibration ball mill, air pulverizer, and so on. At the same time, its working efficiency can be greatly improved.

Powder metallurgy: copper powder, iron powder, nickel powder, tungsten powder, aluminium powder, tungsten carbide powder, alloy powder, tungsten compound, tungstic acid, tungsten trioxide, ammonium paratungstate, calcium tungstate, sodium tungstate, blue tungsten, etc. Fine ceramics: nitrides, carbides, borides.
Others: In the chemical industry, medicine, food, alloy fibers and other industries, the machine has also been widely used.
